Ease of use.
Easy to use system for air duct connection to make it fast and sure each time. Cut the duct - place a seal on duct - insert duct - Press clip till "CLICK"
Reliability & Quality
Class D air tightness tested to EN 12237 - Guaranteeing all your connections are truly airtight.
Air Safe
Controlled indoor environment, removing Co2, moisture, pollutants. Insuring your home and occupants are breathing healthy clean air.

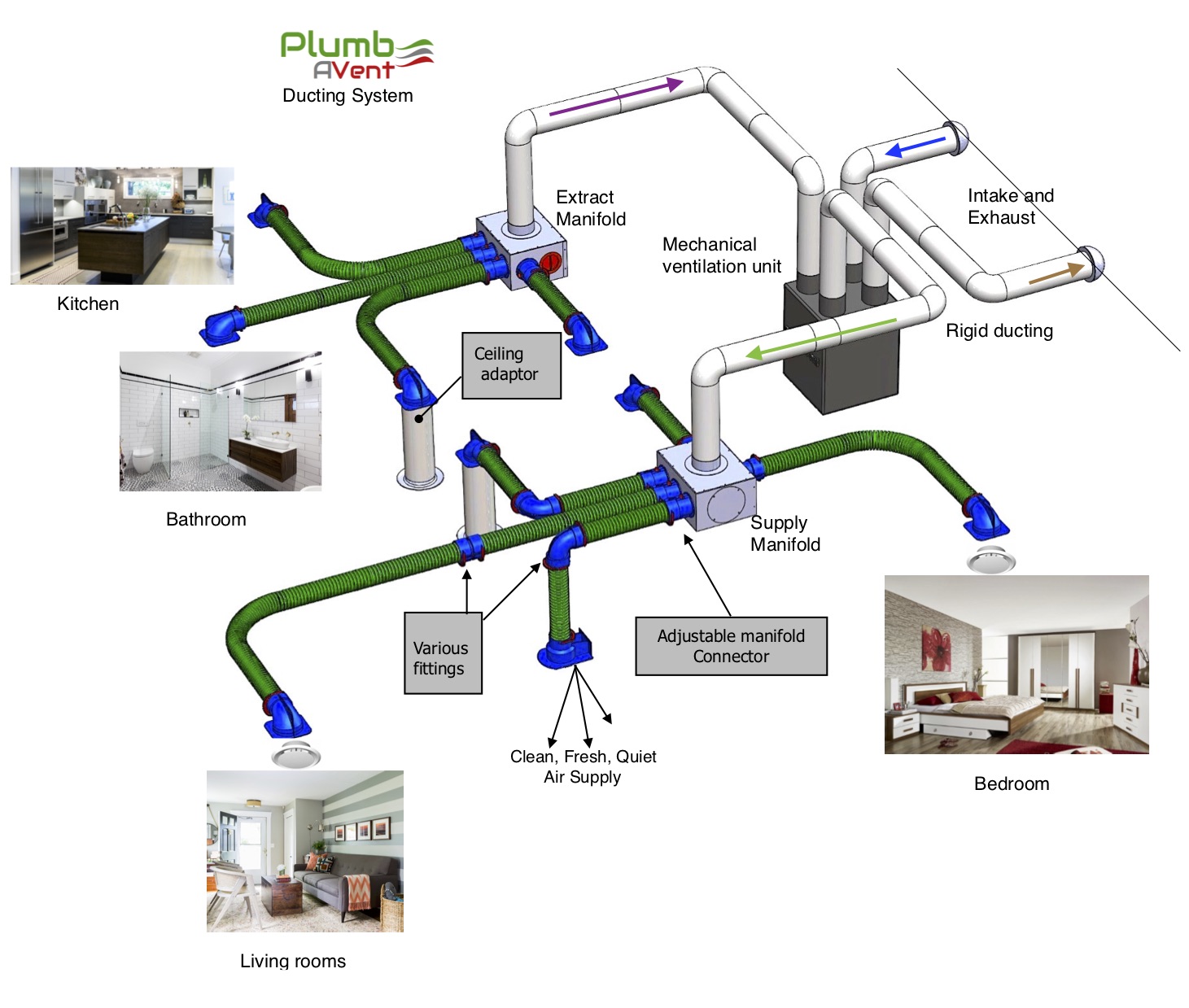

Radial system Benefits
- Each room has its own supply / Extract
- Each room is easily adjusted to the required air flow
- Airtight - easy to use ducting system
- No cross-talk between rooms
- Anti static and Anti Bacterial ducting easily cleaned
- Component construction from strong industrial ABS plastic.
Easily "Click & Go",

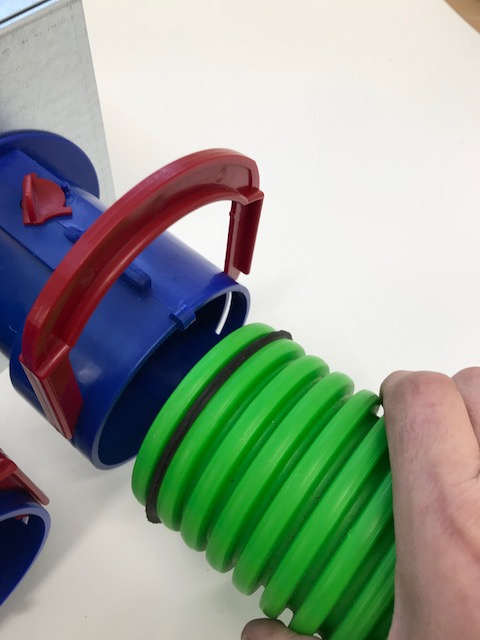

Step 1
Step 2

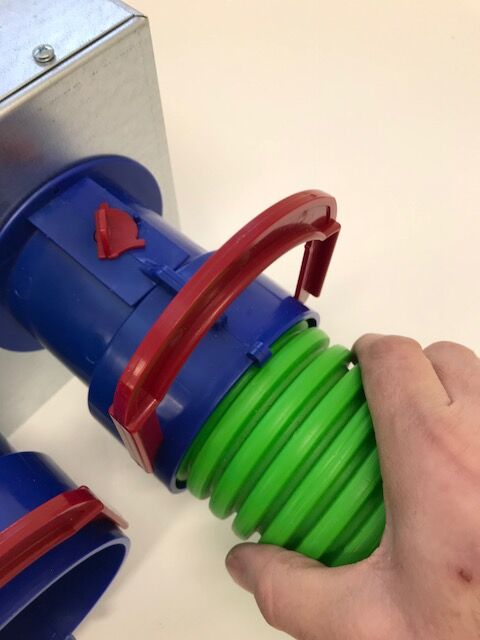

Step 3A unique system of mechanically retaining the duct in place.
The "CLICK & G0" system allows for one person use where the clip is retracted allowing the duct with the seal to be inserted.

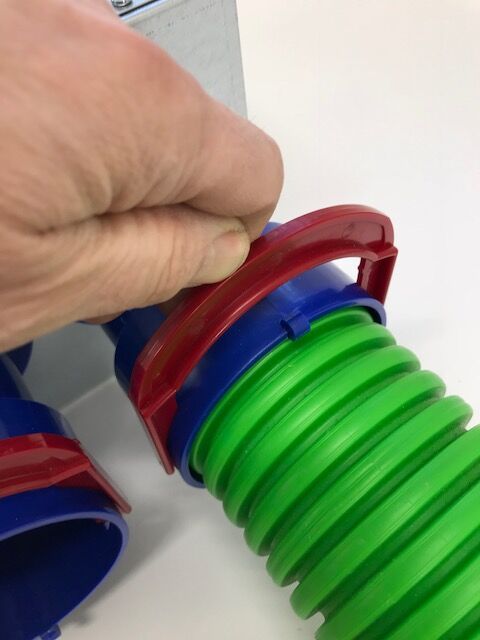

The clip is then inserted fully until a “CLICK” is heard.

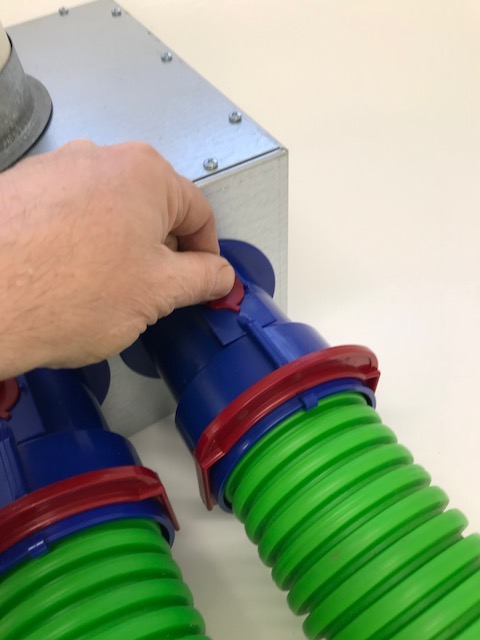

Air Adjust
Series 90 pro
A unique system allowing the adjustment of the air while the system is running at source, not at the outlet allowing for a quieter system.
Adjustment here is a simple valve movement - no complicated stripping the manifold down to adjust, simply adjust to the air required and go.

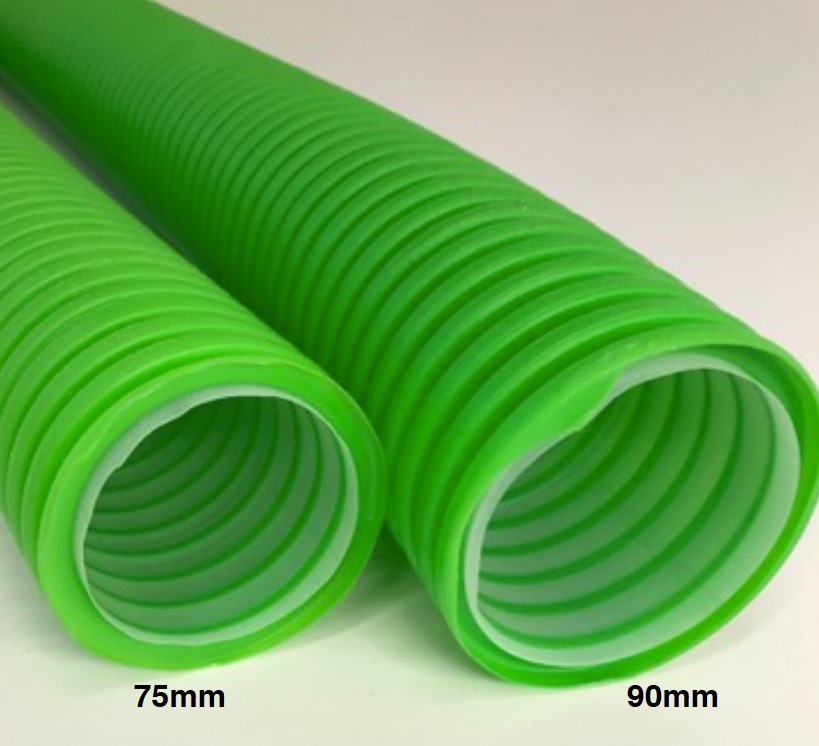

Two system types
Series 75 with a duct size of 75mm and a bore size of 63mm allows for an effective budget system and an ideal air volume capacity of 20m3/hr
Series 90 PRO with its larger size of 90mm giving a ideal air movement capacity of 30m3/hr and ultimate volume control
Series 90 pro
With its larger size of 90mm giving a ideal air movement capacity of 30m3/hr and ultimate volume control- installation and setup has never been so easy.

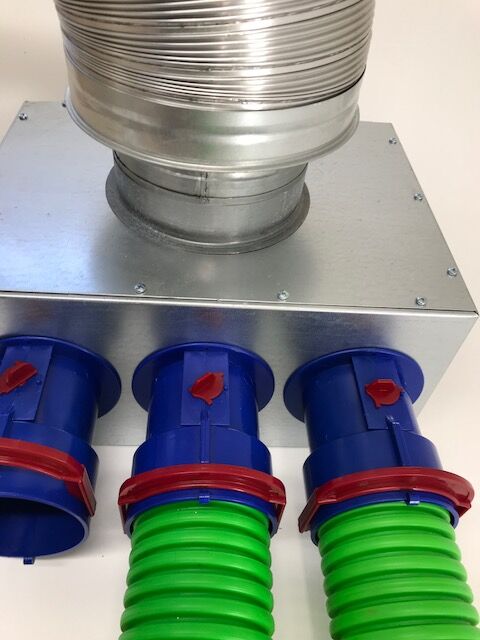

Manifold
5 configurations of manifold consisting of galvanised steel construction and a inner layer of 8mm sound absorbing foam - the manifold is easily opened for cleaning and is class D airtight.
More information
Manifold Connector
Fast & Secure connection, Insert Connector in location required, rotate 90 degrees, That's it you’re ready for duct.
More information
Series 75
With a duct size of 75mm and a bore size of 63mm this series allows for an effective budget system and an ideal air volume capacity of 20m3/hr. If more volume is required a second duct can be connected to the ceiling outlet.
Manifold
5 configurations of manifold consisting of galvanised steel construction and a inner layer of 8mm sound absorbing foam - the manifold is easily opened for cleaning and is class D airtight.
Manifold Connector
Fast secure push fill connection to connect the 75 duct to the required manifold.
Ceiling outlet
Low profile ceiling outlet easy to install and utilising push-fit for the 75 duct.
